1/72 McDonnell Douglas F-4J Phantom II: NL212 VF-194 1977 "Ferris Camouflage"
From Hobby Master
CODE: HA1932
Length: 10.5 inches
Width: 6.25 inches

The F-4J was the last version produced for the USN and USMC. The “J” version was
basically an upgraded “B” version with new radar and avionics as well as a better
engine that required a longer afterburner nozzle. One of the most noticeable changes to
the “J” version is what isn’t there; the infrared seeker under the nose was deleted. Also
missing was an internal gun but Sparrow and Sidewinder missiles were used for
intercepting. Between 1966 and 1972 there were 522 F-4Js built. The F-4J had the
distinction of scoring the only USMC air-to-air combat victory in Vietnam and it also was
the last US operational aircraft in
South East Asia. In mid 1970 the F-4 Phantom II was being replaced by the new and
improved F-14 Tomcat.

On August 1, 1963 VF-91 was re-designated and for the third VF-194 “Red Lightning”
was used. Between 1964 and 1973 VF-194 made eight deployments to Vietnam. In 1976
VF-194 was re-equipped with the F-4J Phantom II and assigned to the USS Coral Sea.
Three VF-194 F-4Js received the “Ferris Camouflage” scheme named after artist Keith
Ferris. Designed to break up the aircraft’s line and confuse the enemy it was never
officially adopted. One of the 3 aircraft that received this scheme was Bu. No. 153798
NL/212 c/n 2005.

Specification for the F- 4J

Engines: 2 X General Electric J79-GE-8B/8C/10 turbojets, 11,870 lb.s.t dry, 17,900 lb. s.
t. with afterburner. (lb.s.t. - Pounds Static Thrust)
Maximum speed: 1,584 mph at 48,000 ft. (Mach 2.4), 875 mph at sea level (Mach 1.15)
Initial climb rate: 41,250 fpm.
Service ceiling: 70,000 ft.
Combat ceiling: 54,700 ft.
Combat range: 596 miles, maximum range 1,956 miles with maximum external fuel.

30,770 lbs empty.
46,833 lbs gross.
41,399 lbs combat weight.

Wingspan: 38 ft. 5 in.
Wing area: 530 square ft.
Length: 58 ft. 3.75 in.
Height: 16 ft. 3 in.

Maximum internal fuel: in fuselage tanks 1,347 US gal.
Internal wing tanks: 630 gal.
Maximum external fuel: 3,317 US gal.
600 US gal in a centerline tank, 370 US gal in each of two tanks that could be carried
underneath the outer under wing pylons.

4 X AIM-7 Sparrow semi-active radar homing air-to-air missiles in semi-recessed slots in
the fuselage belly.
2 X to 4 AIM-9 Sidewinder infra-red homing air-to-air missiles carried under the wings on
the inboard pylons.
Maximum offensive load of up to 16,000 lbs carried on the centerline and 4 under wing
hard points.

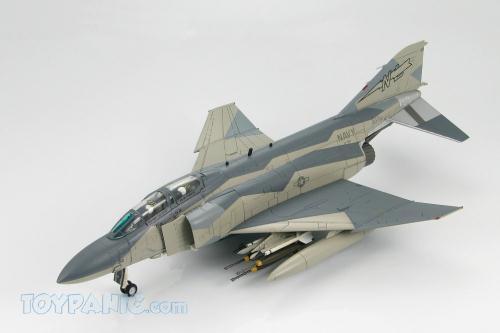

Hobby Master 1/72 Air Power Series
McDonnell Douglas F-4J Phantom II
NL212, VF-194, 1977 "Ferris Camouflage"
1/72 scale.

Professionally painted.

Great attention to detail.

All markings are Tampoed (pad applied).

Option to display the model on a stand that is provided.

Model can be shown with the landing gear in the down or up positions.

Canopy can be displayed open or closed.

Pilot figures included.

Extremely heavy metal with a minimum of plastic.

Highly collectible.
Assemble Guide: No assembly required.
Our Price: MYR235.00


Only applicable within Peninsula Malaysia.
NOT applicable for Sabah, Sarawak & international order.
